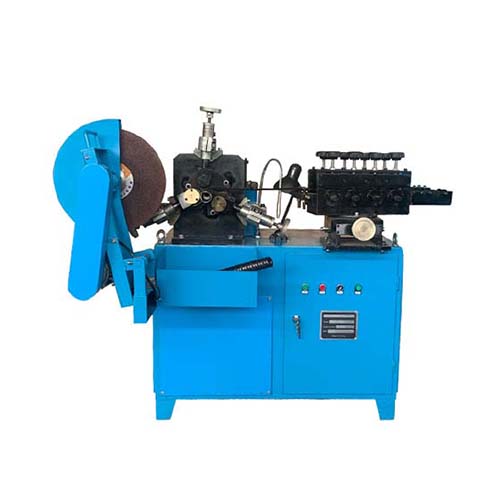

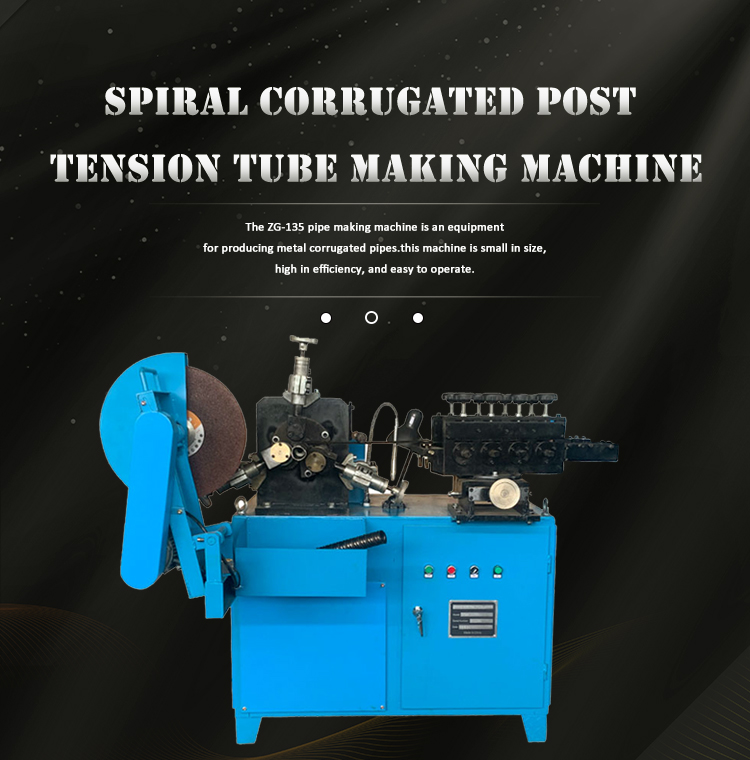

Round pipe machine

product description:

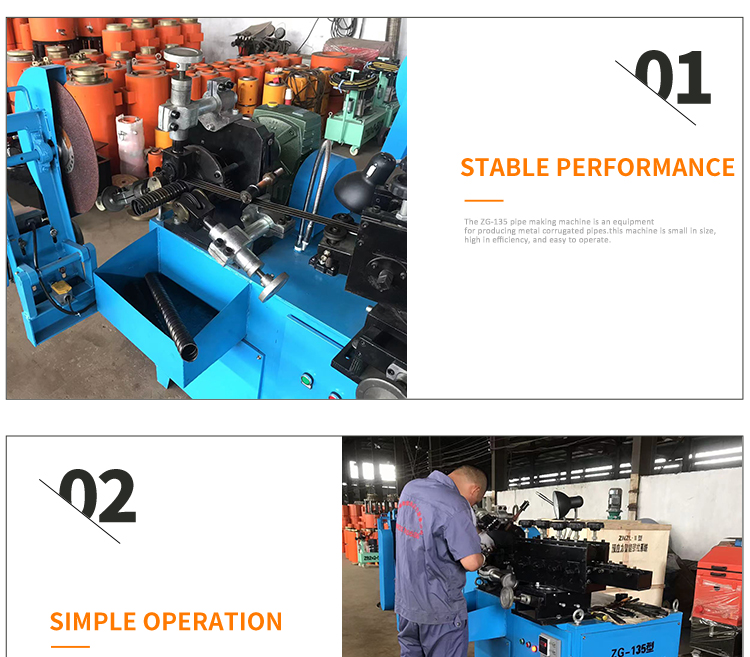

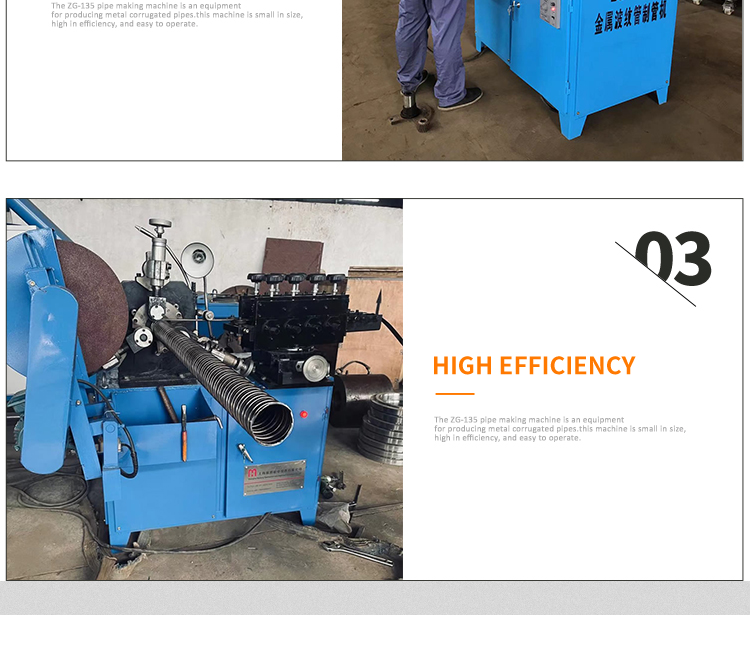

The main features of the double-wave metal bellows pipe machine are small volume, high production efficiency, simple operation and maintenance, and are suitable for centralized production on construction sites or factories.

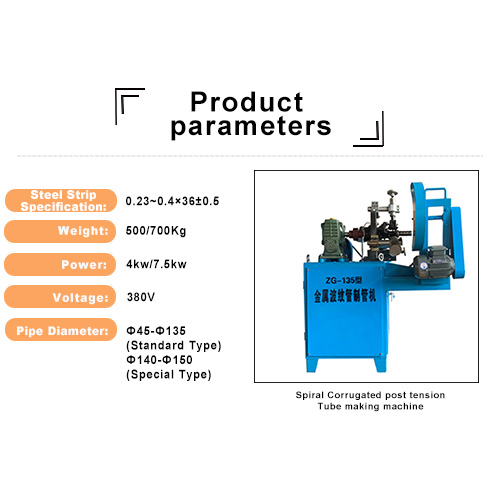

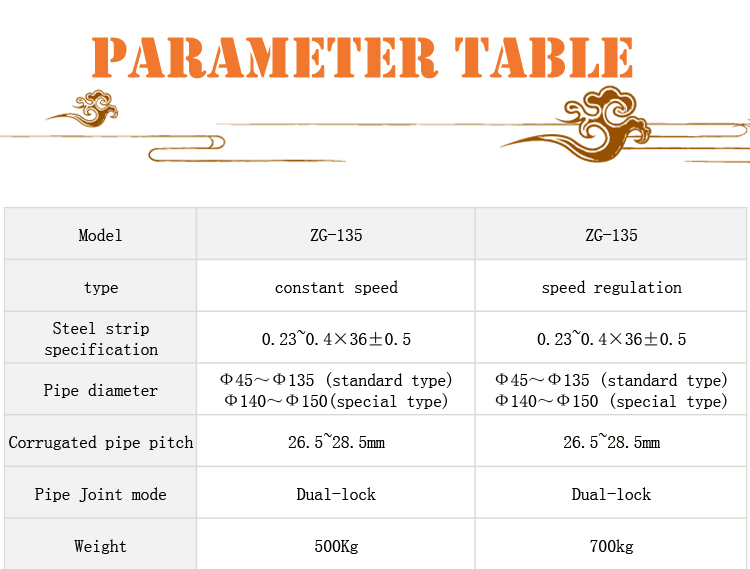

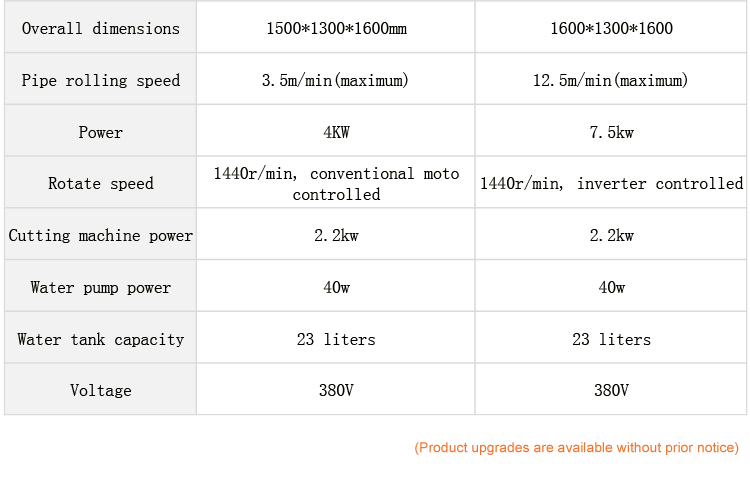

Technical Parameters:

1. Main motor power: N=4KW/7.5kw N=1430rad/min

2. Strip width: b=36mm

3. Strip thickness: d=0,25~0.35mm

4. Diameter range of coiled tube: Φ35~Φ135mm

5. Production speed: Φ35~Φ65 4m/min

                                  Φ70~Φ135 2m/min

6. Cutting motor power: N=0.75KW N=1380rad/min

working principle:

The pipe making machine is driven by a motor to reduce the speed of the worm gear reducer, and then drives the mandrel. A helical gear on the mandrel meshes with two spur gears to pull the steel belt. After the steel belt is pressed by four sets of rollers and flanged,

Wrapped on the mandrel, and then occluded by the pressing wheel, the compacting wheel embosses and the compacting wheel becomes a spiral bellows.
