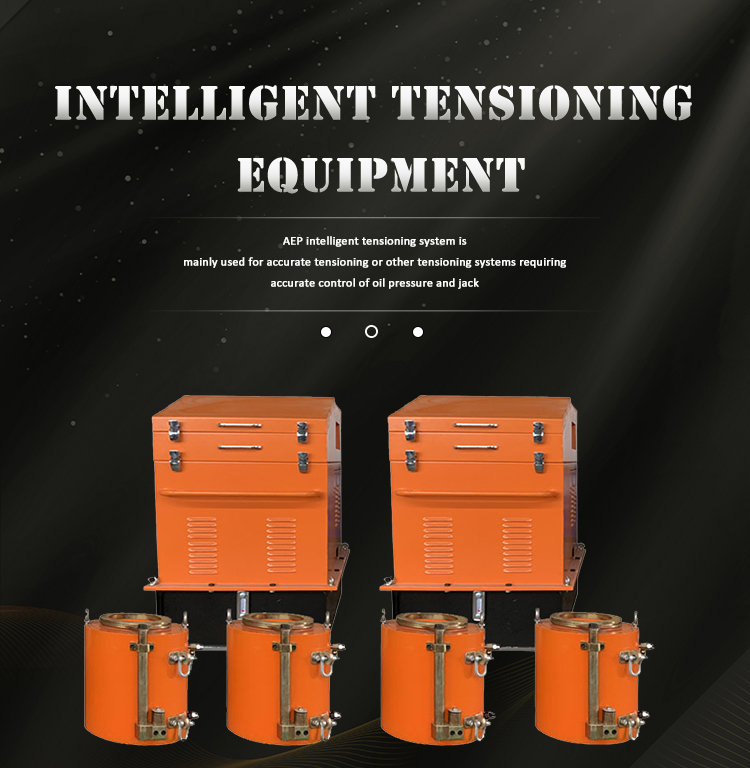

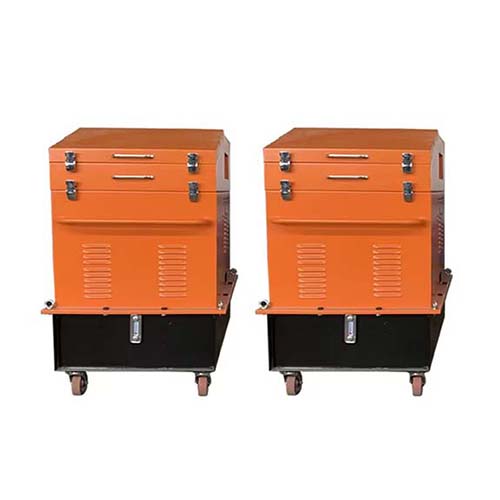

Intelligent tensioning equipment

product description:

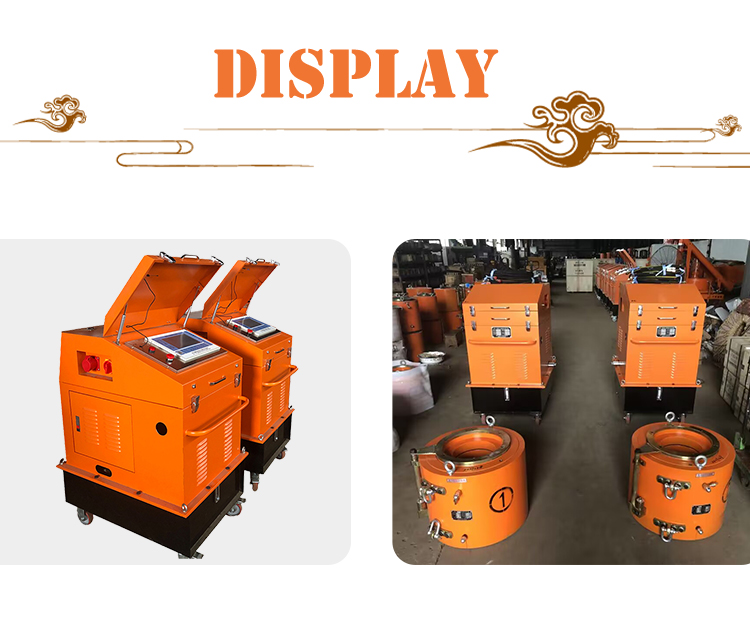

Intelligent tensioning equipment

The intelligent tensioning system is mainly used for precise tensioning or other tensioning systems that require precise control of oil pressure and jacks; the "one-key tensioning" solution automates the tensioning process, and simultaneously passes the tensioning information data through The Internet is passed on to the supervisor and the owner for supervision in a timely manner.

working principle:

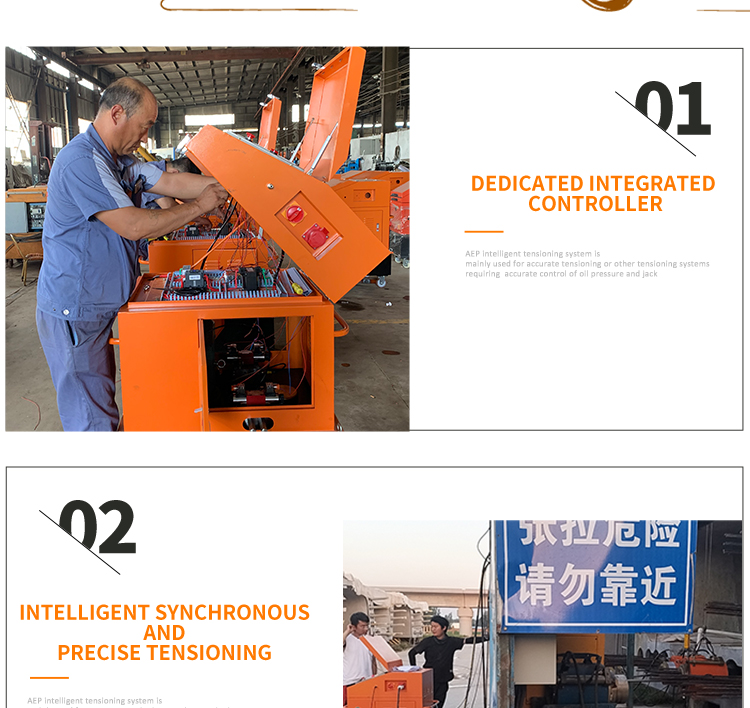

The intelligent tensioning equipment adopts the wireless connection between the main pump and the auxiliary pump, and the distance between the main and auxiliary pumps can reach up to 200M. The auxiliary pump transmits the sensor signal to the main pump,

The main pump receives the signal and sends the control signal back to the auxiliary pump to control the oil supply and oil return of the jack to achieve synchronous and precise tensioning construction.

During the tensioning construction, the main pump transmits the on-site tensioning parameters to the monitoring computer or related websites through wireless transmission.

Eight tensioning methods:

1. Single beam single ended

2. Single beam double ended

3. Double beam single ended

4. Four-beam single-ended

5. Double beam double ended

6. push

7. Single machine double beam

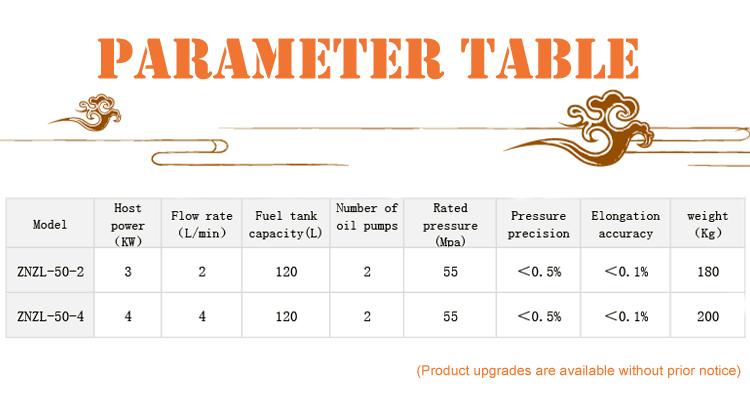

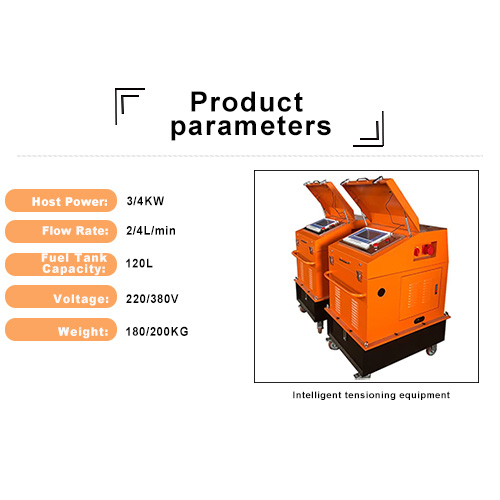

Technical indicators:

Pressure range: 0-55Mpa

Synchronous force accuracy: ±2%FS

Synchronous displacement accuracy: ±1%FS

Load speed: stepless frequency conversion speed regulation

Measuring range: 0-400mm

Unlimited transmission distance: ≤200m

Working voltage: 380V±10%

System Features:

Building block system architecture, free organization of tensioning methods

Adopt stepless speed regulation and frequency conversion control mode

A variety of redundant and safe design schemes are adopted

The displacement sensor takes into account the good anti-collision performance

Using dual-channel communication transmission mode

The system supports special tensioning such as single-beam tensioning, inverted top tensioning, supplementary tensioning, etc.

Open system program, software can be upgraded infinitely

Waterproof grade IP54
