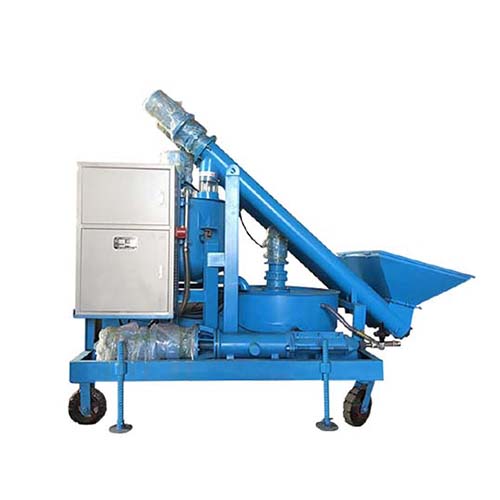

PLC Synchronous Grout Machine

Product Overview:

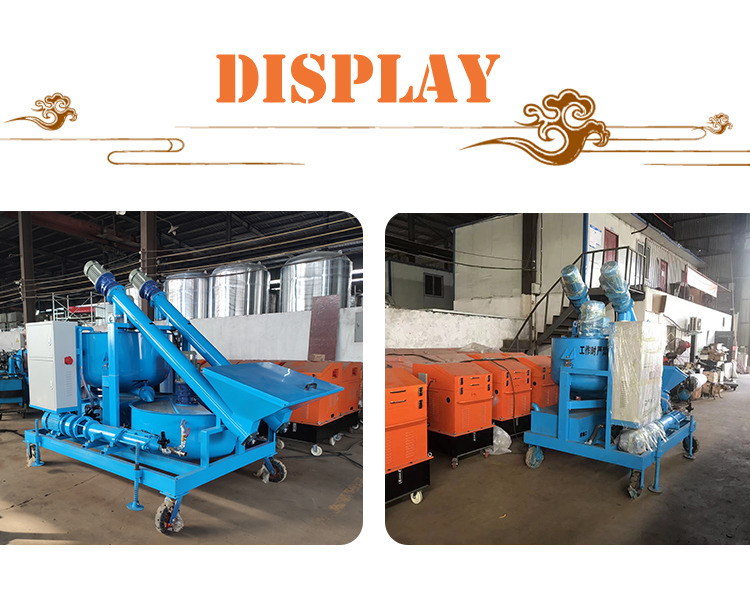

The prestressed intelligent grouting equipment is integrated by automatic water dispensing system, high-speed mixer, low-speed mixer, vacuum pump, screw grouting pump and electric valve.

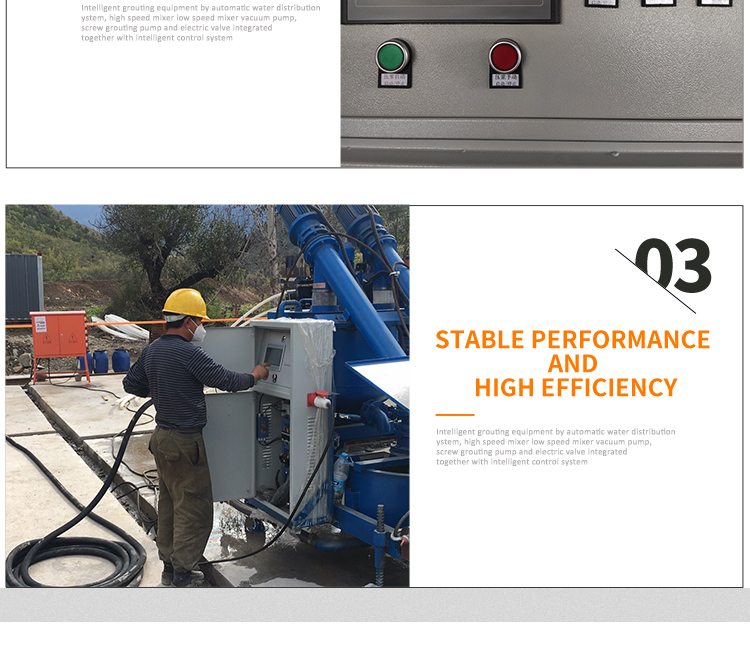

Cooperate with intelligent control system, so that the equipment to achieve intelligent purpose. The intelligent grouting system can be divided into high-speed stirring system, vacuum system, grouting system.

Application scope of prestressed intelligent grouting equipment: It is suitable for grouting construction of prestressed passage of all Bridge

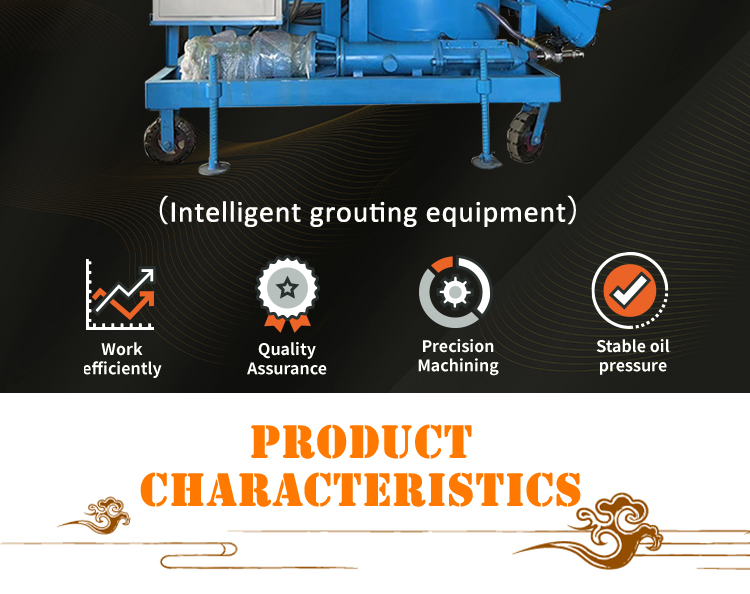

Special features of prestressed intelligent grouting equipment:

1. Intelligent control: intelligent control of pulping, pressing and measurement and control, automation of the whole construction process;

2. High integration: the pulping system, the pulp storage system, the grouting system and the measurement and control system are integrated into one, and the construction can be carried out only by connecting pipelines on site.

3. Efficient construction: large volume of pulping and pulp storage, high pulping efficiency;

4. Precise control: precise control of slurry water binder ratio, control grouting, regrouting and beam hole pressure, to achieve standardized construction;

5. Data processing: automatically process data in real time, generate various reports required by project management, and realize remote management of construction quality.

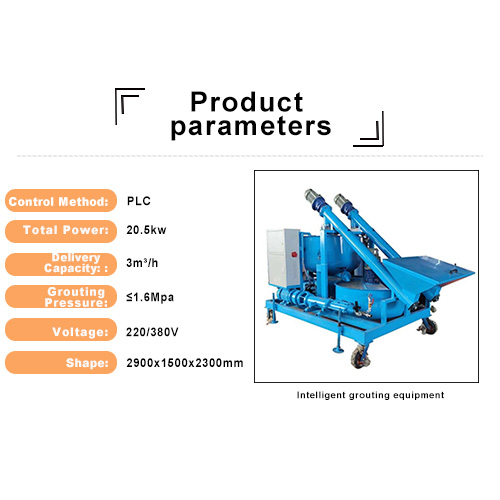

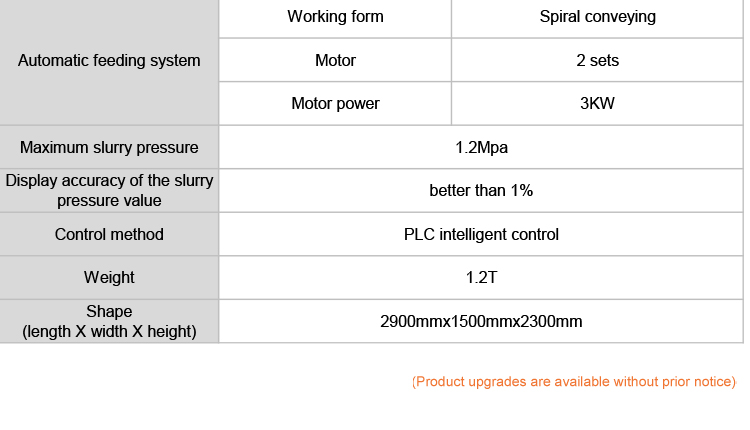

System parameters:

High speed Mixer: 1440 RPM

Low speed Mixer: 35 RPM

Blade linear velocity: 14.5m/s

Low speed tank capacity: maximum 800kg

Single stirring: Max. 500kg

Low speed filling filter mesh size: < 3mm

Total power: 20kw

Maximum vacuum: -0.097Mpa

Throughput: 3m3/h

Maximum grout pressure: 1.2Mpa

Grout pressure value display accuracy: 0.01Mpa

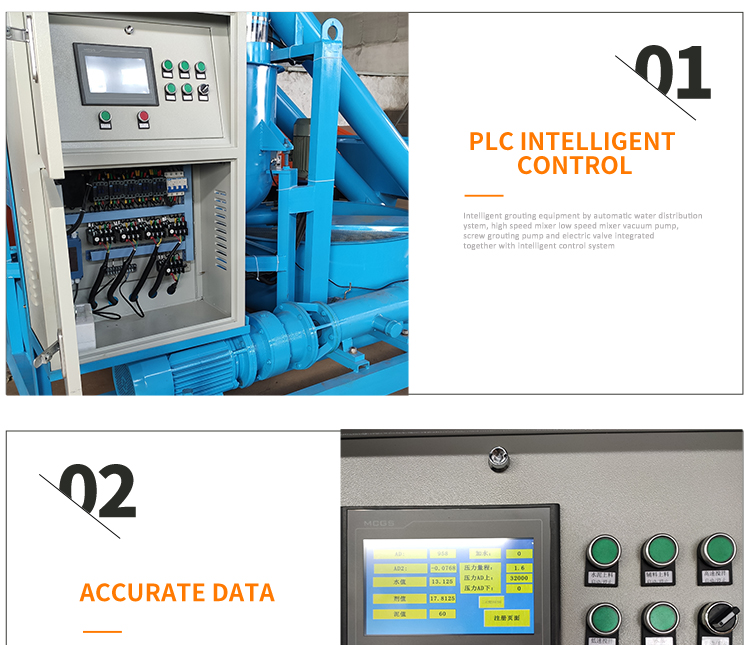

Control mode: PLC intelligent control

Appearance (L X W X H) : 2900mmx1500mmx2300mm

Weight: 1.2T

Scope of application of prestressed circulating intelligent grouting equipment:

It is suitable for grouting construction of prestressed passage of all Bridges.
